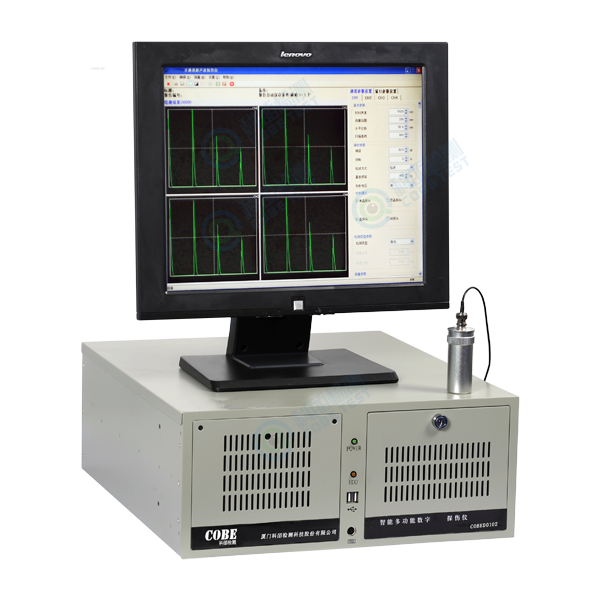

Intelligent Digital Multi-channel Ultrasonic detector

Intelligent Digital Multi-channel Ultrasonic detector

COBE-UT21XX Intelligent Digital Multi-channel Ultrasonic detector uses the most advanced digital electronic technology and ultrasonic technology.With beautiful design,steady performance, easy operation and favorable price features .

The instruments can be widely used for titanium tube, zirconium tubes, seamless steel tubes, welded gas and oil pipelines, nonferrous metals, ferrous metals and some other non-metallic pipes, bars, plates ,and the rail automatic (or semi-automatic) non-destructive ultrasonic testing.



Features

Independent transmitting channel and switched receiving channel. Casual combination and recycle operation are all available.

With own R&D Digital equipment, powerful function

Simple configuration, and flexible connection towards the hardware, and 128 channels testing available via various Communicating junction modes.

Motor control and other I/O ports reservation is available on the condition that the testing projects needs is satisfied.

Each channel has three gates, alarm gate, tracking gate, self locking gate;

Complete alarm function, to meet different kinds of needs of the automatic detection system

Use of advanced alarm circuit technology which is effective to inhibit the outside interference, strong capacity of resisting disturbance, can improve the reliability of the alarm.

Software is modularized ,and can according to your need to be configured.

Advanced instrument circuit design and process design , reliable performance, steady operation.

File editing function: can storage, invocation, play back and print the testing conditions and flaw wave form, then form the test report .

Communication function :  via TCP/IP protocol to realize the communication of lower computer and the upper monitor. In this case, we are capable to realize the control via this detector or the upper monitor through the cable network or wireless network

Software: continuously upgraded. The OEM testing software is available to meet different testing requirements

Main Technical Data

 Gain

 0-100dB,step 0.1dB

Detection channels

 4, 8,12,16,20,24, 32

 Operation mode

 Single probe transmitter and receiver, dual probe transmitter and receiver

Scan mode

  ABC type scan

 Surplus Sensitivity

 ≥65dB

 Resolution

 ≥36dB

 Dynamic range

 ≥42dB

 Scan rangesteel longitudinal wave

 0~6000mm

 Frequency range

 0.5~20MHz

 Repetition frequency

 100Hz~10KHz adjustable

 Vertical linearity

 ≤3%

 Horizontal linearity

 ≤1%

 Gate setting

 Each channel has three gates, alarm gate, tracking gate, self locking gate

Delayed (marking) alarm

 split in two,delayed time :0.5~10S,step: 0.1S

Testing conditions and flaw wave form

Quantity unrestrictedinvocation,wave replay、wave communicatewave print

Test report

 Automatic generateWORD 、EXECL

Parameter storage

 Detection state parameters、echo pattern、DAC curve and remark information etc.

Clock Type

Inner, outer CLOCK

Encoder

50-1024 (Optional)

Detector mode

positive, negative, bi-directional, radio frequency (RF)

Peak memory

Can choose echo peak memory display,background  peak wave can be in a different color represents.

SAPA、RA、%

Real-time display
